Forest cranes
Palms cranes are combination of high workmanship and durability. Our technical engineering solutions are based on everyday practical using experience.

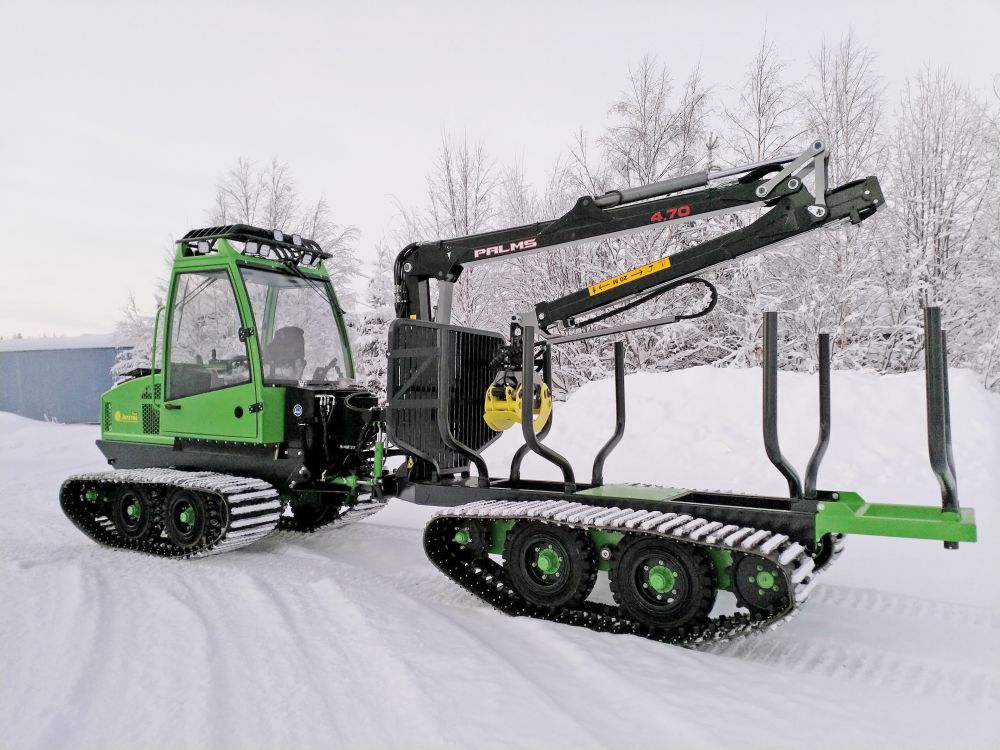

Palms 4.70
| Max outreach, m | 7,0 |
| Brutto lifting torque 215 Bar, kNm | 53 |
| Brutto lifting torque 190 bar, kNm | 47 |
| Lifting capacity at 4m, 215 Bar, w/o grapple and rotator, kg | 1020 |
| Lifting capacity at full reach, 215 Bar, w/o grapple and rotator, kg | 530 |
| Lifting capacity at 4m, 190 Bar, w/o grapple and rotator, kg | 940 |
| Lifting capacity at full reach, 190 Bar, w/o grapple and rotator, kg | 480 |
| Telescopic boom stroke length, m | 1,85 |
| Slewing cylinder amount in slewing housing, pcs | 4 |
| Slewing torque, kNm | 15 |
| Working pressure, bar | 215 |
| Rotator maximum load, kN | 45 |
| Crane weight without support leg and valve block, kg | 710 |
| Pillar slewing angle, degrees | 370 |
| Recommended oil flow, L/min | 45-70 |
4TH SERIES cranes are powerful but do not require a large tractor. Technologies and components used in their construction are same as those of greater series, yet models in the 4th series remain light and compact.
