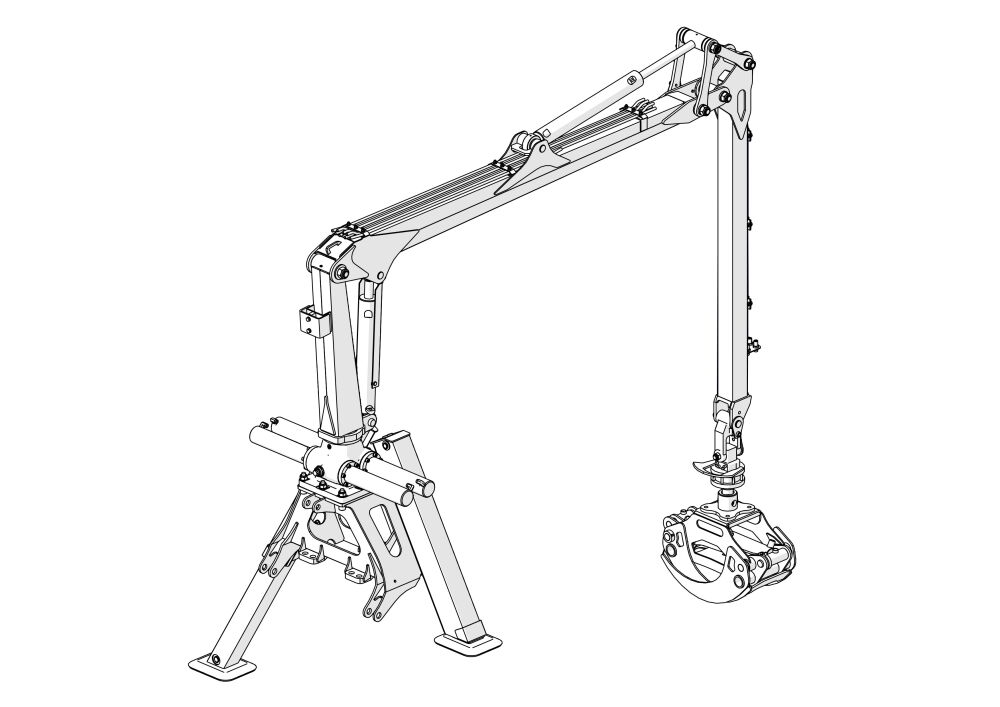

Ideal choice for customers seeking simplicity, lightweight, and compact size. Compatible with PALMS 6S and 8SX trailers.
| Series | 2 |
| Max outreach, m | 4,2 |
| Lifting capacity at full reach, 240 Bar, w/o grapple and rotator, kg | - |
| Lifting capacity at full reach, 215 Bar, w/o grapple and rotator, kg | - |
| Lifting capacity at full reach, 190 Bar, w/o grapple and rotator, kg | 540 |
| Lifting capacity at 4 m, 240 Bar, w/o grapple and rotator, kg | - |
| Lifting capacity at 4m, 215 Bar, w/o grapple and rotator, kg | - |
| Lifting capacity at 4m, 190 Bar, w/o grapple and rotator, kg | 570 |
| Brutto lifting torque 240 Bar, kNm | - |
| Brutto lifting torque 215 Bar, kNm | - |
| Brutto lifting torque 190 bar, kNm | 26 |
| Telescopic boom stroke length, m | - |
| Slewing cylinder amount in slewing housing, pcs | 4 |
| Slewing torque, kNm | 7,8 |
| Working pressure, bar | 190 |
| Rotator maximum load, kN | 45 |
| Crane weight without support leg and valve block, kg | 360 |
| Pillar slewing angle, degrees | 370 |
| Recommended oil flow, L/min | 20-35 |
