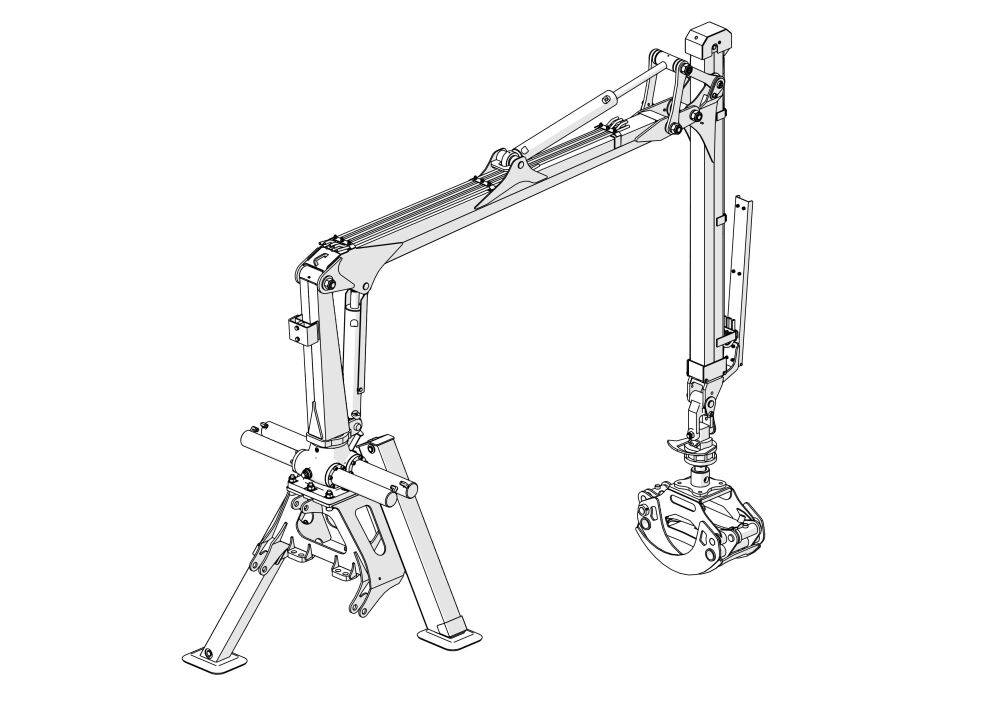

Compact and lightweight crane, ideal for municipal parks and other environmentally sensitive areas. Mountable on various platforms, from forestry trailers and trucks to mini-forwarders. Compatible with PALMS 6S and 8SX trailers.
Series | 2 |
Max outreach, m | 5,4 |
Lifting capacity at full reach, 215 Bar, w/o grapple and rotator, kg | 410 |
Lifting capacity at full reach, 190 Bar, w/o grapple and rotator, kg | 370 |
Lifting capacity at 4m, 215 Bar, w/o grapple and rotator, kg | 600 |
Lifting capacity at 4m, 190 Bar, w/o grapple and rotator, kg | 530 |
Brutto lifting torque 215 Bar, kNm | 29 |
Brutto lifting torque 190 bar, kNm | 26 |
Telescopic boom stroke length, m | 1,33 |
Slewing cylinder amount in slewing housing, pcs | 4 |
Slewing torque, kNm | 7,8 |
Working pressure, bar | 190/215 |
Rotator maximum load, kN | 45 |
Crane weight without support leg and valve block, kg | 400 |
Pillar slewing angle, degrees | 370 |
Recommended oil flow, L/min | 20-35 |
