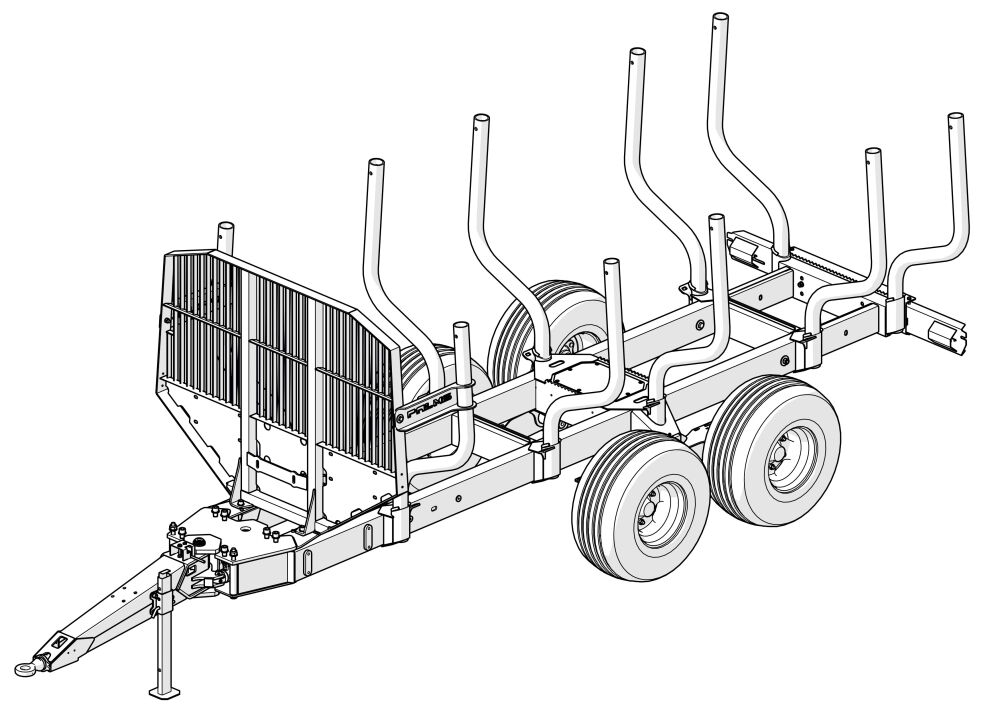

PALMS 10D, featuring a double-beam frame and a 10-ton nominal load capacity, stands as one of the best-selling forest trailers in the PALMS product lineup. It pairs perfectly with most PALMS cranes and additional equipment, allowing for customization to create a setup that precisely meets your expectations.
| Loading area cross section, m2 | 2,4 |
| Loading area length, mm | 3975 |
| Frame extension length, m | 0.85 |
| Gross weight, kg | 13000 |
| Curb weight (without options), kg | 1765 |
| Total length, mm | 6200 |
| Width with standard wheels | 2165 |
| Standard wheel size | 400/60-15,5 |
| Frame | 2x200x100x8 |
| Max crane size by lifting torque, kNm | 85 |
| Drawbar control cylinders standard/(optional), pcs | 2 |
| Frame type | Double beam |
| Recommended cranes | PALMS 5.72 PALMS 5.85 |
| See also | WHEELS - WH BIOMASS BOX - BBOX ROBSON WHEEL DRIVE CONTROLLED WITH TRACTOR'S HYDRAULICS - RWD |
