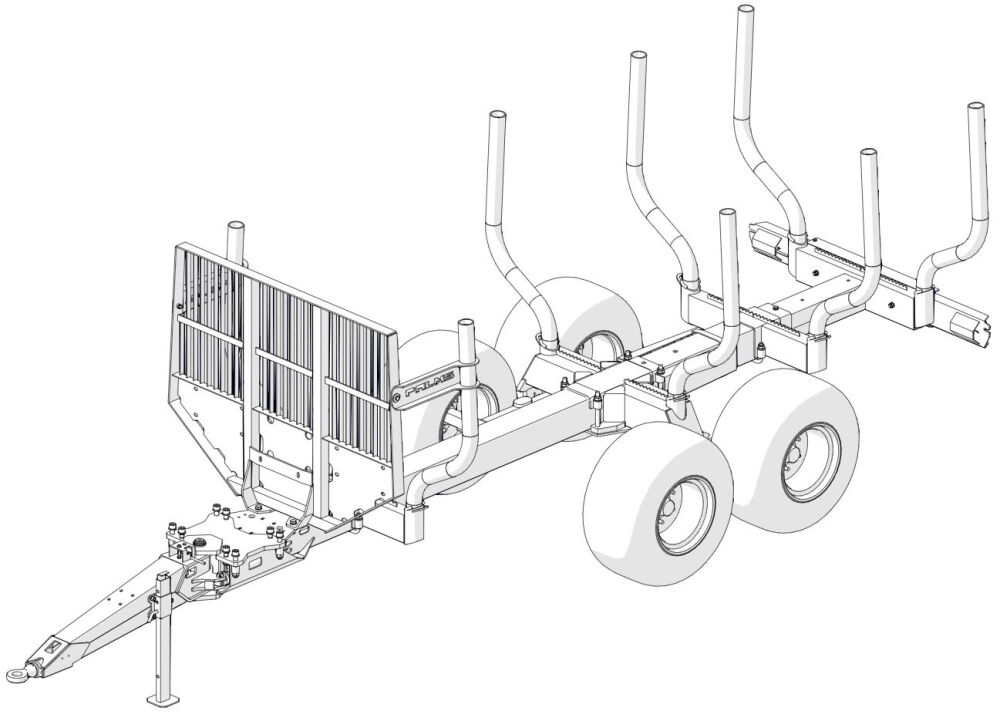

PALMS 9SC is our largest single-beam trailer in the product lineup with a nominal load capacity of 9 tons. It is ideal for customers who prefer the simplicity of a single-beam trailer while requiring a longer reach from a forestry crane. This feature makes it a popular choice, for example, among arborists. Additionally, PALMS 9SC stands out in user convenience among other single-beam trailers with its drawbar quick-lock system and patented bolster locks.
Loading area cross section, m2 | 2,15 |
Loading area length, mm | 3870 |
Frame extension length, m | 0,70 |
Gross weight, kg | 12000 |
Curb weight (without options), kg | 1425 |
Total length, mm | 6095 |
Width with standard wheels | 2135 |
Standard wheel size | 400/60-15,5 |
Frame | 200x200x8 |
Max crane size by lifting torque, kNm | 65 |
Drawbar control cylinders standard/(optional), pcs | 2 |
Frame type | Single beam |
Recommended cranes | PALMS 4.71 PALMS 5.72 |
See also | WHEELS - WH CHAINSAW ATTACHMENT - MSH |
