Forest cranes
Palms cranes are combination of high workmanship and durability. Our technical engineering solutions are based on everyday practical using experience.

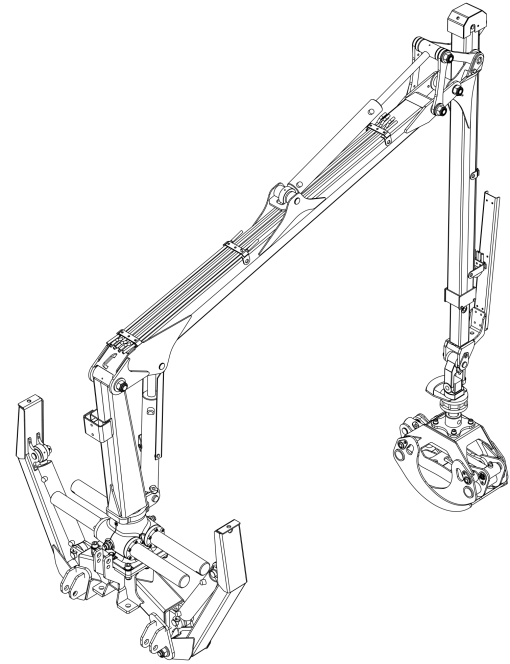

Palms 2.54
| Max outreach, m | 5,4 |
| Brutto lifting torque 215 Bar, kNm | 29 |
| Brutto lifting torque 190 bar, kNm | 26 |
| Lifting capacity at 4m, 215 Bar, w/o grapple and rotator, kg | - |
| Lifting capacity at full reach, 215 Bar, w/o grapple and rotator, kg | - |
| Lifting capacity at 4m, 190 Bar, w/o grapple and rotator, kg | 530 |
| Lifting capacity at full reach, 190 Bar, w/o grapple and rotator, kg | 370 |
| Telescopic boom stroke length, m | 1,33 |
| Slewing cylinder amount in slewing housing, pcs | 4 |
| Slewing torque, kNm | 7,8 |
| Working pressure, bar | 190 |
| Rotator maximum load, kN | 30 |
| Crane weight without support leg and valve block, kg | 400 |
| Pillar slewing angle, degrees | 370 |
| Recommended oil flow, L/min | 20-35 |
2ND SERIES cranes are smallest in the PALMS cranes selection. Despite the compact size, these cranes are serious workhorses and can be used universally in many ways. The technological solutions are similar as used in our bigger crane series. These cranes are easy to control, and they can be mounted on different platforms.
