Forest trailers

It does not matter, if you need machine for your farm or for every day work in woods. Palms models range consists machines suitable for every need.

Palms 6S Palms 8SX Palms 9S Palms 10D Palms 10U Palms 12U Palms 13D Palms 13U Palms 15U Palms MWD 3.2 Palms HMWD 3.2

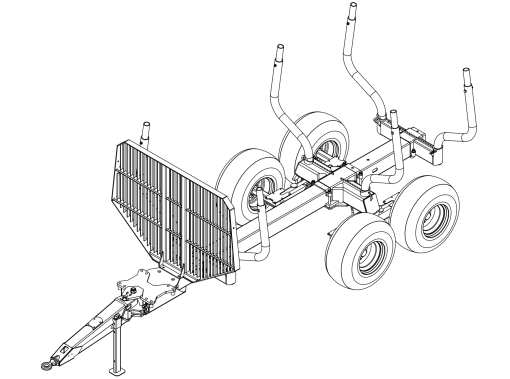

Palms 9S

Loading area cross section, m2	2,25
Loading area length, mm	3900
Frame extension length, m	0.70
Gross weight, kg	12000
Curb weight (without options) kg	1375
Total length, mm	6040
Width with standard wheels	2150
Standard wheel size	400/60-15,5
Frame	200x200
Max crane size by lifting torque kNm	65
Drawbar control cylinders standard/(optional), pcs	2

Show comparison table

S-SERIES forestry trailers are light and compact. The gross weight of the trailer depends on the model, between 8.5–12 tons. Single beam trailers are suitable for 2nd, 3rd, 4th and 5th series cranes.
