Forest trailers

It does not matter, if you need machine for your farm or for every day work in woods. Palms models range consists machines suitable for every need.

Palms 6S Palms 8SX Palms 9S Palms 10D Palms 10U Palms 12U Palms 13D Palms 13U Palms 15U Palms MWD 3.2 Palms HMWD 3.2

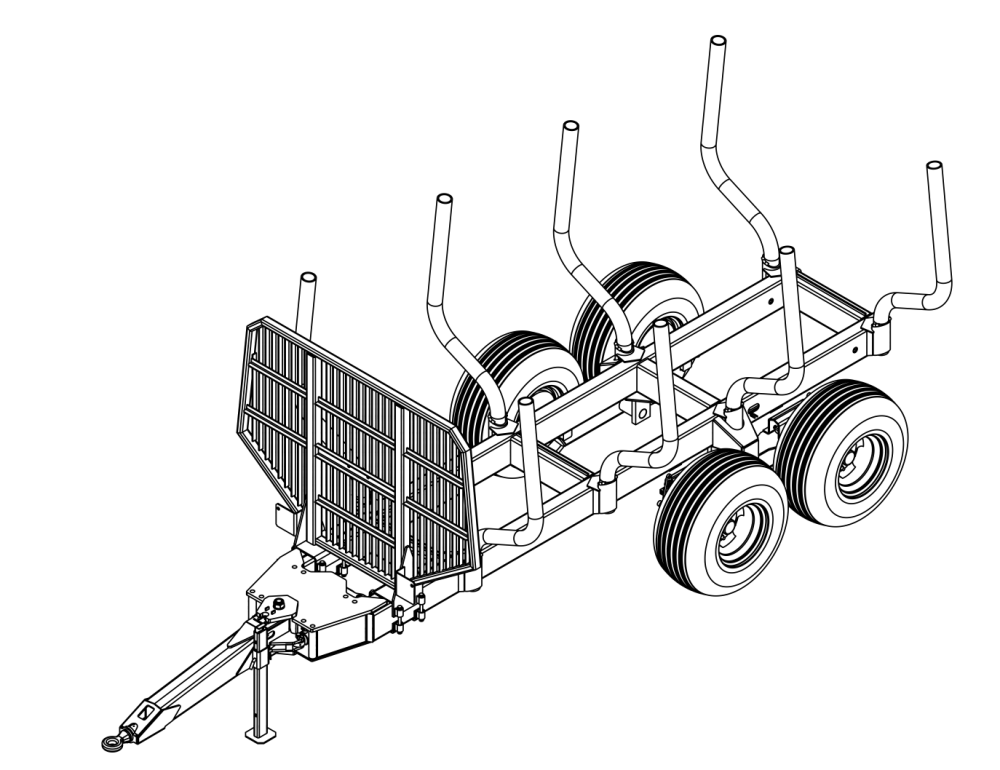

Palms 10D

Loading area cross section, m2	2,4
Loading area length, mm	4000
Frame extension length, m	0.85
Gross weight, kg	13000
Curb weight (without options) kg	1570
Total length, mm	6140
Width with standard wheels	2150
Standard wheel size	400/55-22,5
Frame	2x200x100
Max crane size by lifting torque kNm	75
Drawbar control cylinders standard/(optional), pcs	2

Show comparison table

D-SERIES trailers have a strong double beam frame design that provides large loading capacity. These trailers can
be combined with 3rd, 4th, 5th and 7th series cranes.
