Forest trailers

It does not matter, if you need machine for your farm or for every day work in woods. Palms models range consists machines suitable for every need.

Palms 6S Palms 8SX Palms 9S Palms 10D Palms 10U Palms 12U Palms 13D Palms 13U Palms 15U Palms MWD 3.2 Palms HMWD 3.2

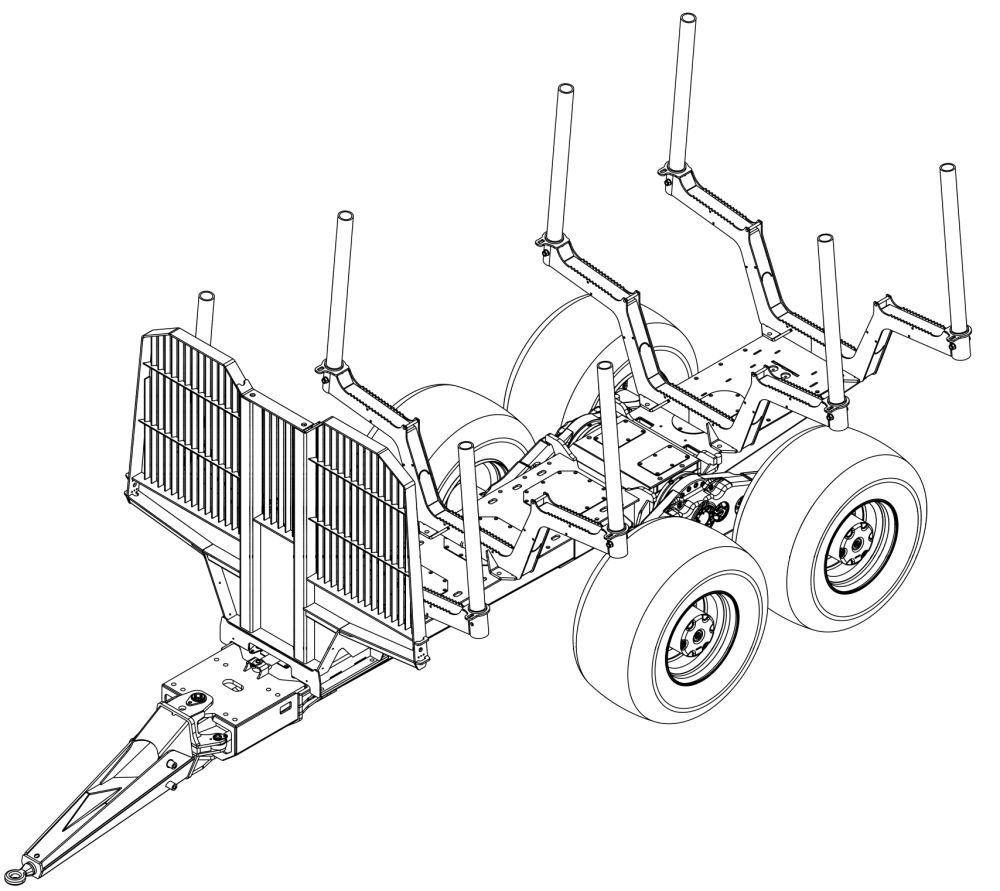

Palms MWD 3.2

Loading area cross section, m2	3,2
Loading area length, mm	4235
Frame extension length, m	0.9
Gross weight, kg	18000
Curb weight (without options) kg	4020
Total length, mm	6430
Width with standard wheels	2470
Standard wheel size	600/50x22,5
Frame	unibody
Max crane size by lifting torque kNm	120
Drawbar control cylinders standard/(optional), pcs	2

Show comparison table

Fully mechanical MWD 3.2 needs
a customized transmission box between the tractor’s ground speed PTO and trailer axles. Therefore, the MWD 3.2 can only be used with tractor for which this trailer has been designed.
