Forest trailers

It does not matter, if you need machine for your farm or for every day work in woods. Palms models range consists machines suitable for every need.

Palms 6S Palms 8SX Palms 9S Palms 10D Palms 10U Palms 12U Palms 13D Palms 13U Palms 15U Palms MWD 3.2 Palms HMWD 3.2

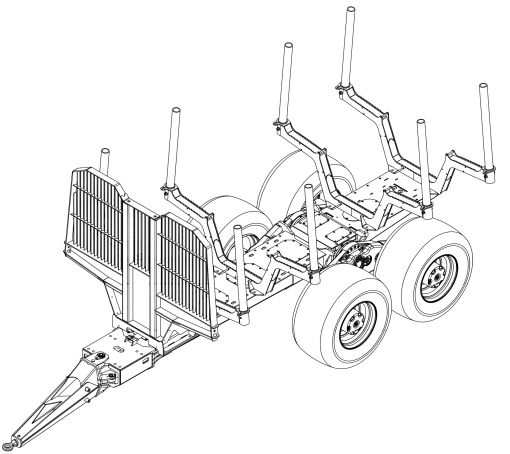

Palms HMWD 3.2

Loading area cross section, m2	3,2
Loading area length, mm	4185
Frame extension length, m	0.9
Gross weight, kg	18000
Curb weight (without options) kg	4100
Total length, mm	6430
Width with standard wheels	2470
Standard wheel size	600/50x22,5
Frame	unibody
Max crane size by lifting torque kNm	120
Drawbar control cylinders standard/(optional), pcs	2

Show comparison table

Hydro mechanical HMWD 3.2 has a hydro mechanical transmission, between the tractor’s PTO and axles. This 4x4 system is universal and fits onto all suitable sized tractors with PTO.
