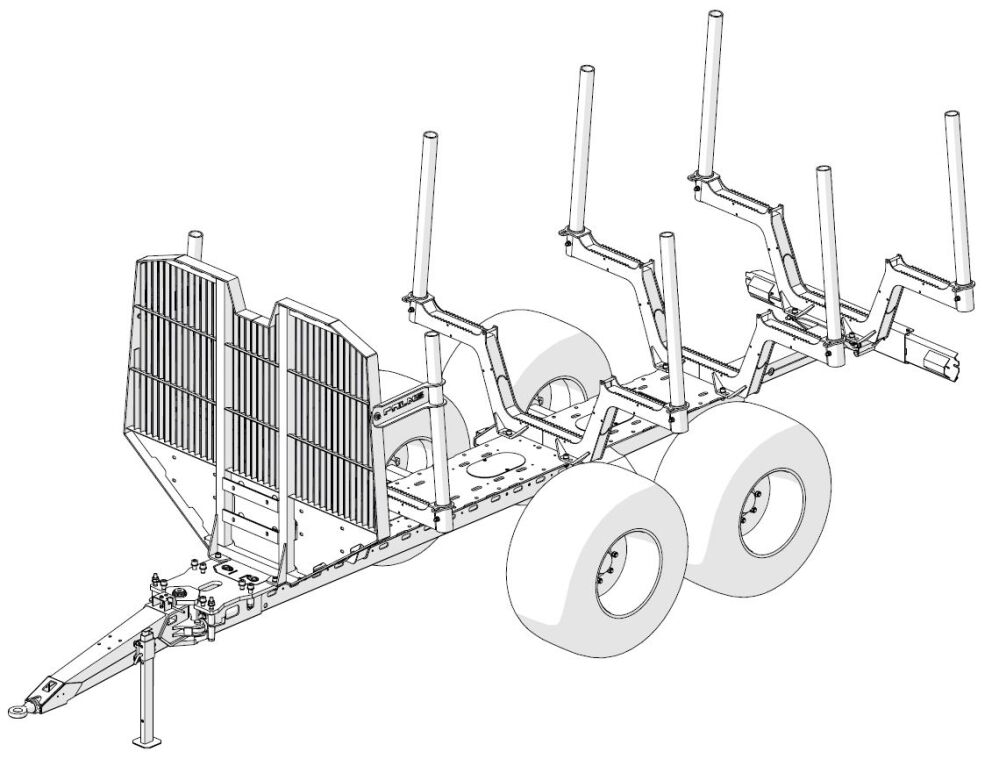

PALMS 15U has a 15-ton nominal load capacity and also represents the forest trailer with the highest permissible gross weight in our product range. It's designed for everyday professional forestry work in demanding conditions. Its high clearance and oval frame reduce the risk of getting stuck on stumps. Additionally, all hydraulic and electronic components are securely housed within the frame.
Loading area cross section, m2 | 3,2 |
Loading area length, mm | 4175 |
Frame extension length, m | 1,085 |
Gross weight, kg | 19000 |
Curb weight (without options), kg | 2545 |
Total length, mm | 6415 |
Width with standard wheels | 2450 |
Standard wheel size | 500/50-22,5 |
Frame | unibody |
Max crane size by lifting torque, kNm | 120 |
Drawbar control cylinders standard/(optional), pcs | 2 |
Frame type | Unibody (Forwarder) |
Recommended cranes | PALMS 7.86 PALMS 7.94 PALMS X100 |
See also | WHEELS - WH FORWARDER TYPE HYDRAULIC BUNK EXTENSION - PA-H BLACKBRUIN 4WD - 4WD |
